Schneider LC1G115KUEN - High Power contactor
Description of LC1G115KUEN

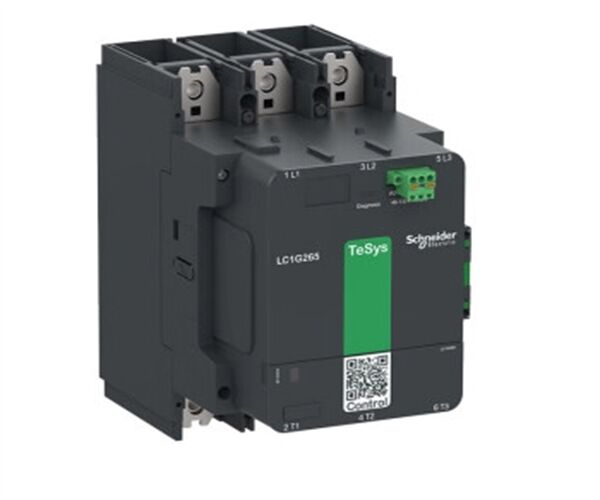

TeSys Giga high power contactor, 3 poles (3 NO) for category AC-3 applications up to 150A 90kW@440V. It provides a 100-250V AC/DC wide band low consumption electronic coil and embedded highly reliability 1NO+1NC auxiliary contact block (17V 1mA). Designed for demanding applications with maximum operating rates up to 600 cycles per hour and environments until 60°C. It procures high reliability and durability with 5 Mcycles mechanical durability. Local Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It is possibility to replace switching module (main contacts), enhancement contactor life. Contactor can be fixed in all quadrants, maintenance without removing cables/busbars, and OLR could be directly mounted below contactor. To be used with power connection by bolted connection and control connections by spring terminals, accessible from front for easy and quick replacement. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It can cover -25°C to 60°C operation ambient air temperature and directly mounted on plate, No derating up to 3000m altitude. The dimension is 255mm x 108mm x 175mm (H x W x D), compact size enables panel space savings. Multi standards certified(CE,CB,CCC,cULus,EAC,KC,RCM,Marine) and Green Premium compliant (RoHs/Reach). Unique QR code provides quick access to complete product data.
Specifications of LC1G115KUEN
Main
| Range |
TeSys |
| Range of product |
TeSys Giga |
| Product or component type |
Contactor |
| Device short name |
LC1G |
| Contactor application |
Power switching
Motor control |
| Utilisation category |
AC-1
AC-3
AC-3e
AC-4
AC-5a
AC-5b
AC-6a
AC-6b
AC-8a
AC-8b
DC-1
DC-3
DC-5 |
| Poles description |
3P |
| [Ue] rated operational voltage |
<= 1000 V AC 50/60 Hz
<= 460 V DC |
| [Ie] rated operational current |
250 A (at <40 °C) at <= 1000 V AC-1
115 A (at <60 °C) at <= 440 V AC-3 |
| [Uc] control circuit voltage |
100...250 V AC 50/60 Hz
100...250 V DC |
| Control circuit voltage limits |
Operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C)
Drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C) |
Complementary
| [Uimp] rated impulse withstand voltage |
8 kV |
| Overvoltage category |
III |
| [Ith] conventional free air thermal current |
250 A (at 40 °C) |
| Rated breaking capacity |
1040 A at 440 V |
| [Icw] rated short-time withstand current |
1.1 kA - 10 s
0.64 kA - 30 s
0.52 kA - 1 min
0.4 kA - 3 min
0.32 kA - 10 min |
| Associated fuse rating |
125 A aM at <= 440 V for motor
125 A aM at <= 690 V for motor
315 A gG at <= 690 V
300 A UL Type J at <= 600 V |
| Average impedance |
0.00018 Ohm |
| [Ui] rated insulation voltage |
1000 V |
| Power dissipation per pole |
10 W AC-1 - Ith 250 A
3 W AC-3 - Ith 115 A |
| Compatibility code |
LC1G |
| Pole contact composition |
3 NO |
| Auxiliary contact composition |
1 NO + 1 NC |
| Motor power kW |
30 kW at 230 V AC 50/60 Hz (AC-3e)
55 kW at 400 V AC 50/60 Hz (AC-3e)
55 kW at 415 V AC 50/60 Hz (AC-3e)
75 kW at 440 V AC 50/60 Hz (AC-3e)
75 kW at 500 V AC 50/60 Hz (AC-3e)
75 kW at 690 V AC 50/60 Hz (AC-3e)
30 kW at 230 V AC 50/60 Hz (AC-3)
55 kW at 400 V AC 50/60 Hz (AC-3)
55 kW at 415 V AC 50/60 Hz (AC-3)
75 kW at 440 V AC 50/60 Hz (AC-3)
75 kW at 500 V AC 50/60 Hz (AC-3)
75 kW at 690 V AC 50/60 Hz (AC-3)
30 kW at 230 V AC 50/60 Hz (AC-4)
55 kW at 400 V AC 50/60 Hz (AC-4)
55 kW at 415 V AC 50/60 Hz (AC-4)
65 kW at 440 V AC 50/60 Hz (AC-4)
65 kW at 500 V AC 50/60 Hz (AC-4)
75 kW at 690 V AC 50/60 Hz (AC-4) |
| Motor power hp |
30 hp at 200/208 V 60 Hz
40 hp at 230/240 V 60 Hz
75 hp at 460/480 V 60 Hz
100 hp at 575/600 V 60 Hz |
| Irms rated making capacity |
1560 A at 440 V |
| Coil technology |
Built-in bidirectional peak limiting |
| Safety reliability level |
B10d = 400000 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 3000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Mechanical durability |
8 Mcycles |
| inrush power in VA (50/60 Hz, AC) |
540 VA |
| inrush power in W (DC) |
380 W |
| hold-in power consumption in VA (50/60 Hz, AC) |
12.4 VA |
| hold-in power consumption in W (DC) |
7.8 W |
| Operating time |
40...70 ms closing
15...50 ms opening |
| Maximum operating rate |
600 cyc/h AC-3
600 cyc/h AC-3e
300 cyc/h AC-1
150 cyc/h AC-4 |
| Connections - terminals |
Power circuit: bar 2 - busbar cross section: 25 x 6 mm
Power circuit: lugs-ring terminals 1 185 mm²
Power circuit: bolted connection
Control circuit: push-in 1 0.2…2.5 mm² - cable stiffness: solid stranded without cable end
Control circuit: push-in 1 0.25…2.5 mm² - cable stiffness: flexible with cable end
Control circuit: push-in 2 0.5…1.0 mm² with cable end
Control circuit: push-in 0.75…2.5 mm² - cable stiffness: solid stranded without cable end
Control circuit: push-in 0.75…2.5 mm² - cable stiffness: flexible with cable end |
| Connection pitch |
35 mm |
| Mounting support |
Plate |
| Standards |
EN/IEC 60947-4-1
EN/IEC 60947-5-1
UL 60947-4-1
CSA C22.2 No 60947-4-1
JIS C8201-4-1
JIS C8201-5-1
IEC 60335-1:Clause 30.2
IEC 60335-2-40:Annex JJ
UL 60335-1
UL 60335-2-40:Annex JJ |
| Product certifications |
CB Scheme
CCC
cULus
EAC
CE
UKCA
EU-RO-MR by DNV-GL |
| Tightening torque |
18 N.m |
| Height |
193 mm |
| Width |
108 mm |
| Depth |
193 mm |
| Net weight |
3.5 kg |
Environment
| IP degree of protection |
IP2X front face with shrouds conforming to IEC 60529
IP2X front face with shrouds conforming to VDE 0106 |
| Ambient air temperature for operation |
-25…60 °C |
