Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
Merek: | GE Fanuk | Model: | IC693CHS399 |
---|---|---|---|
Seri: | Seri 90-30 | Jenis Produk: | Papan dasar jarak jauh |
Koneksi CPU: | Yg dibutuhkan | Jumlah cpu yang didukung: | 1 |
Panjang Kabel Maksimum yang Didhukung: | 700 kaki | Jumlah slot: | 5 |
Konektor Ekspansi: | Konektor Tipe D Wanita 25-Pin | Tipe Sakelar DIP: | Saklar DIP Pemilihan Nomor Rak |
Cahaya Tinggi: | Pengontrol Logika yang Dapat Diprogram 30VDC,Modul Simulator Input 150Hz,Modul Input Arus Analog 250Ohm |

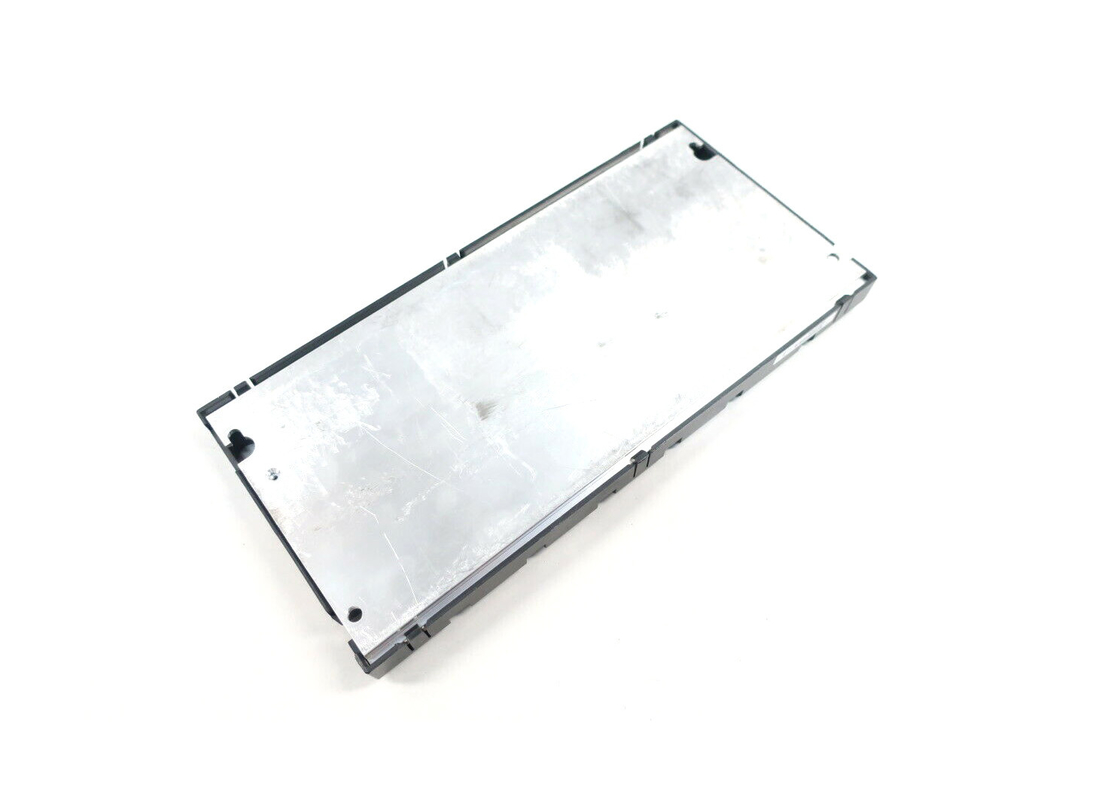

The GE Fanuc IC693CHS399 is a 5-Slot Remote Baseplate for GE Fanuc series 90-30 PLCsPLCs dapat menjalankan berbagai program, yang dikembangkan dengan perangkat lunak GE Fanuc.dan mereka terdiri dari komponen plug-in dan modular.
There are three types of Baseplates for GE Fanuc PLCs. The first type is the CPU baseplate, which has the main processor, and is essential to the PLC. The next two are remote and expansion baseplates..Remote baseplates are the same size and use the same power supply as expansion baseplates.The GE Fanuc IC693CHS399 Remote Baseplate can process and transfer data from a very big distance, yet both support the same modules. The GE Fanuc IC693CHS399 Remote Baseplate can process and transfer data from a very big distance, yet both support the same modules.
There can be up to 700 feet of cable between the Remote Baseplate and any other baseplate. It has isolated power supply for I/O modules.,Perangkat ini memiliki kemampuan remote baseplate hingga 700 kaki dalam jarak.
The GE Fanuc IC693CHS399 Remote Baseplate needs its own power supply module, which plugs on the left slot of the board.,Pada sisi kanan dari boars adalah slot ekspansi yang menghubungkan GE Fanuc IC693CHS399 Remote Baseplate with other baseplates.The number of Remote Baseplates on a GE Fanuc Series 90 PLC is defined by the processor of the main CPU (jumlah remote baseplates pada GE Fanuc Series 90 PLC).331, 340, and 341 CPUs can connect with up to four Remote Baseplates, while 350 CPUs can connect with up to seven..331, 340, and 341 CPUs can connect with up to four Remote Baseplates, while 350 CPUs can connect with up to seven.
Jenis modul: | Expansion I/O Base |
Opsi Baseplate: | Ekspansi |
Jaraknya: | Hingga 700 kaki |
Jumlah slot: | 5 |
Dimensi: | 10.43 x 5.12 x 5.59 inci (W x H x D) |
Daya internal yang digunakan: | 480 mA @ 5 VD |
