Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Merek: | Panasonic | Nomor Model: | MHMD082G1U |
|---|---|---|---|
| Negara Asal: | Jepang | Jenis: | Motor servo |
| Waktu Pengiriman: | 2-3 HARI | Daya - Dinilai: | 50W |
| Tegangan - Nilai: | 100, 200VAC | RPM: | 3000 RPM |
| Berat badan: | £ 0,705 (319,78g) | ||
| Menyoroti: | AC Servo Motor,electric servo motor |
||

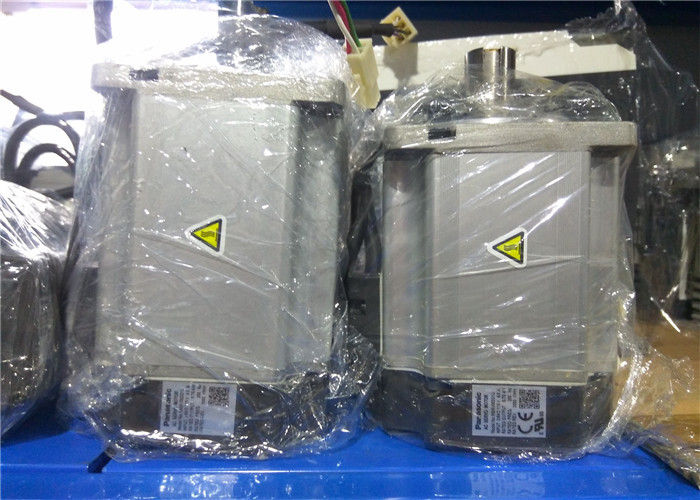

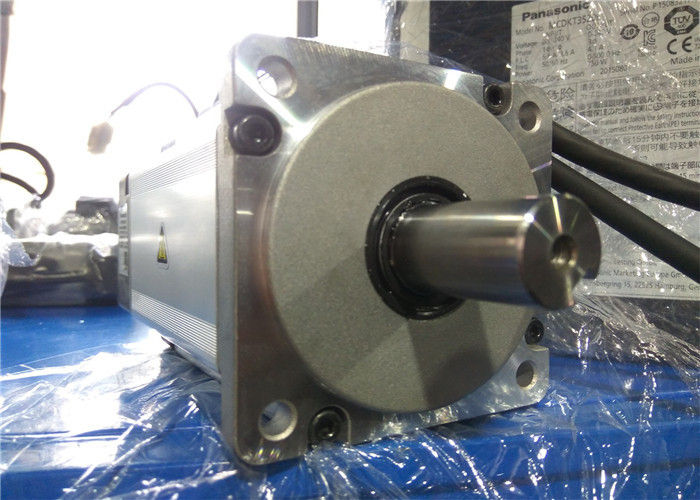

MHMD082G1U AC Motor Servomotor 3000 RPM 750W Inkremental 200VAC Panasonic
Deskripsi:
Servo; A5; 750W; 20 Bit Incremental Encoder; Motor 200V; Kunci & Tap Shaft (OS)
A5 - 750W 20 Bit Incremental Encoder, Motor 200V, Key & Tap Shaft (Oil Seal)
Servomotor 3000 rpm 200VAC
Spesifikasi teknis:
|
Fisik |
|
|
Berat badan |
5.5 lb |
|
Teknis |
|
|
Jenis Encoder |
Inkremental |
|
Suhu Operasi Maksimal |
40 °C |
|
Min Suhu Operasi |
0 °C |
|
Rating daya |
750 W |
|
RPM |
3000 rpm |
|
Penghentian |
Wire Lead |
|
Dimensi |
|
|
Jarak lubang pemasangan |
3.543 inci |
|
Kepatuhan |
|
|
Persetujuan |
UL, CSA, CE, TUV |
|
RoHS |
Memenuhi |
Gambaran Produk:
|
Nomor Bagian Digi-Key |
1110-4022-ND |
|---|---|
|
Jumlah yang Tersedia |
8 |
|
Produsen |
|
|
Nomor Bagian Produsen |
MHMD082G1U |
|
Deskripsi |
Servomotor 3000 rpm 200VAC |
|
Waktu lead standar produsen |
11 Minggu |
|
Deskripsi Rinci |
AC Motor Servomotor 3000 RPM 750W Inkremental 200VAC |
| Atribut Produk | Pilih Semua |
| Kategori-kategori | Motor, Solenoid, Papan Pengemudi/Modul |
|---|---|
| Motor - AC, DC | |
| Produsen | Penjualan Otomatisasi Industri Panasonic |
| Seri | Minas A5 |
| Status Bagian | Aktif |
| Jenis | Motor AC |
| Fungsi | Servomotor |
| Jenis mesin | - |
| Tegangan - Nominal | 200VAC |
| RPM | 3000 rpm |
| Torsi - Nominal (oz-in / mNm) | 339.9 / 2400 |
| Kekuatan - Nomor | 750W |
| Jenis Encoder | Inkremental |
| Ukuran / Dimensi | Kuadrat - 3,150 "x 3,150" (80.00mm x 80.00mm) |
| Diameter - poros | 0.748" (19.00mm) |
| Panjang - poros dan bantalan | 1.378" (35.00mm) |
| Jarak lubang pemasangan | 3.543" (90.00mm) |
| Gaya Penghentian | Wire Lead |
| Fitur | Kunci, Oil Seal |
| Rasio Pengurangan Gir | - |
| Torsi - Max Momentary (oz-in / mNm) | 1005 / 7100 |
| Suhu operasi | 0°C ~ 40°C |
| Persetujuan | CE, CSA, cULus, TUV, UL |
| Berat badan | 5.5 lbs (2.5kg) |
Berikut adalah beberapa model drive, baik yang baru dan digunakan yang tersedia:
MSDA3A3A1A MSDA5A3A1A
MSDA023A1A MSDA043A1A
MDDA103A1A MDDA153A1A MDDA203A1A
MDDA253A1A MDDA303A1A MDDA353A1A
MSDA403A1A MSDA503A1A MSD023A1XXV
MSDA083A1XXV MSD043A1X MSDA043D1A
MQDA043A1A MUDS043A1A MUDS023A1A
MUDS083A1A MUMS082A1E0S MUDS083A1M
MUMA012P1T MUMA022P1T MUMA042P1T
MUMA042P1S MUMA012P1S MUMA022P1S
MUMS082P1S MSDA043A1XXV MSDA013A1XXV
MKDET1505P MLDET2310P MUMA082P1T
MLDET2510P MKDET1310P MUMS042A1AOS
MSM041A211 MQMA042A1E MSMA022P1A
MSM042P1B MSM042AJB
MQMA022S2P MSM012AJA MSM012P1F
MDMA152S1C MSM042AJA MQMA012C2P
MSMA022A1B MSM021DJE MSD043A1X
MSD043A1XX MSM042A1A MSM5AZA1B
MUMS012C2U1S MUMS012A1F0S MSMZ082A1B
MSD013A1XX MSM012A1A MSMA012C1A
MSDA013D1A MSMA5AZS1A
MSMD042P1T MUMS022A1B0S MFM082A1C
MQMA042A1E MSMA022C1A MSMA022C1E
