Schneider multifunction input module Modicon Quantum 140ERT85410

Name: Schneider multifunction input module Modicon Quantum 140ERT85410
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: 140ERT85410
Price: 100000.00 USD
Availability: InStock

Rincian produk:

Tempat asal:	Perancis
Nama merek:	Schneider
Nomor model:	140ERT85410

Informasi Rinci

Tempat asal:

Perancis

Nama merek:

Schneider

Nomor model:

140ERT85410

Merek:

Schneider

Model:

140ERT85410

Seri:

140

Nama Produk:

MODUL MASUKAN

Jaminan:

12 bulan

slot:

Kondisi:

Baru

Waktu Pimpin:

dalam stok

Negara Asal:

Perancis

Menyoroti:

High Light

Menyoroti:

Schneider Modicon Quantum input module

PLC multifunction input module

Modicon Quantum 140ERT85410 module

Informasi Perdagangan

Kuantitas min Order:

Harga:

Dapat dinegosiasikan

Kemasan rincian:

Baru dalam kotak aslinya

Waktu pengiriman:

2-3 hari kerja

Syarat-syarat pembayaran:

TT Serikat Barat

Menyediakan kemampuan:

100

Deskripsi Produk

Schneider multifunction input module Modicon Quantum 140ERT85410

Specifications

Main
Range of product	Modicon Quantum automation platform
Product or component type	Multifunction input module
Number of terminals	40

Complementary
Function of module	Status logging counting 500 Hz Status monitoring on discrete inputs Time and date stamped event logging
Time synchronisation protocol	DCF77
Product compatibility	Concept Unity Pro
Group of channels	2 groups of 16 inputs for process input
Discrete input number	1 discrete input(s) at 24 V for clock signal input 32 discrete input(s) at 24...125 V for process input
Switching voltage	125 V at 1 mA for process input 24 V at 6 mA for process input 48 V at 2.5 mA for process input 60 V at 2.5 mA for process input
Maximum power consumption in W	7.5 W for process input
Insulation	By optocoupler for clock signal input
Insulation between group of channels	By optocoupler
Anti bounce filtering	Configurable from 0 to 255 ms
Input state	Inversion configurable
Acquisition time	1 ms for clock signal input
Input current	5 mA for clock signal input
Electrical connection	Cable - shielded cable <600 m for process input Cable - unshielded cable <400 m for process input
Connections - terminals	Screw terminal block
Local signalling	1 LED (green) for communication on the bus (Active) 1 LED (green) for self test OK, module ready (R) 1 LED (red) for fault (F) 32 LEDs for status of inputs (1 to 32)
Current consumption	0.07 mA at 24 V DC 140XCP90000 module 3 mA at 24...125 V DC external power supply per group of channel 300 mA at 5 V DC bus
Module format	Standard
Net weight	0.45 kg

Environment
Resistance to electrostatic discharge	4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2
Resistance to electromagnetic fields	10 V/m 80...2000 MHz conforming to IEC 801-3
Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-40…85 °C
Relative humidity	95 % without condensation
Operating altitude	<= 5000 m
Protective treatment	TC
Standards	HazLoc UL 508
Product certifications	CSA Class 1 Division 2 UL LR C-Tick GOST Merchant Navy

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5 cm
Package 1 Width	16.5 cm
Package 1 Length	31.5 cm
Package 1 Weight	485 g

Contractual warranty
Warranty (in months)	18

140ERT85410 is a multi-functional discrete input module designed by Schneider Electric for the Modicon Quantum automation platform. It has 32 discrete input channels. It supports 500 Hz status monitoring and counting functions, and can record events with time and date stamps for discrete inputs, suitable for state acquisition and fault tracking in industrial automation. This module supports status log recording, facilitating system maintenance and diagnosis. The product offers fast shipping service and is commonly found in PLC system integration.

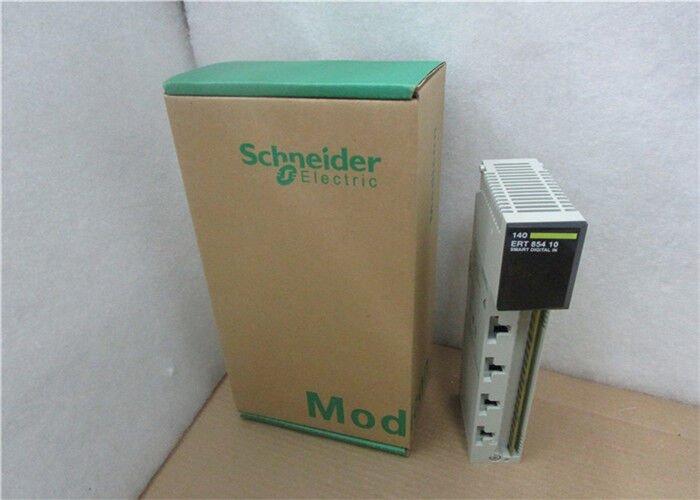

Schneider multifunction input module Modicon Quantum 140ERT85410 0
