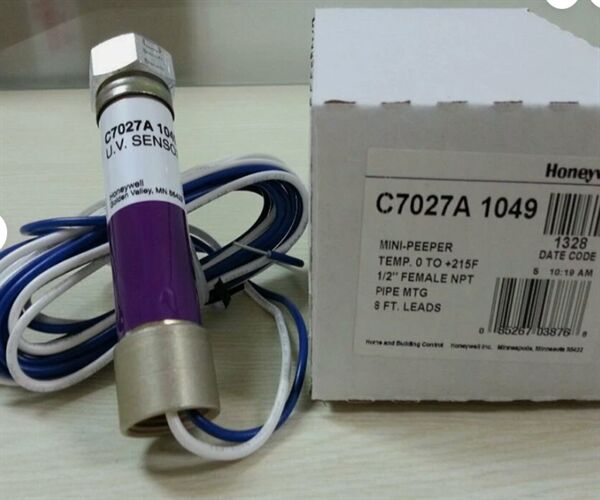

Honeywell C7027A1049 Minipeeper UV Flame Detector

Overview of C7027A-1049:

Compact flame detector for use with flame safeguard controls with ultraviolet amplifiers.

Features:

• Use with Honeywell flame safeguard primary safety controls and burner requiring ultraviolet flame detection
• C70227 mounts on a 1/2 in. sighting pipe by using an integral collar
• Detectors can be wired in parallel for difficult sighting applications
• C7027 seals against pressures up to 5 psi (34.5kPa) when correctly installed
• Allows for blast tube mounting due to compact size
• C7044 mounts with a two screw bracket
• The C7044 UV Sensor tube is enclosed in a stainless steel housing
• C7044 has the capability of side or end viewing in flame monitoring applications

Product Specifications:

Application:  Coal Fired burners; Gas fired burners; Oil fired burners

Dimensions (in.):  1-1/16 in. diameter X 4 in. long

Dimensions (mm):  27 mm X 102 mm long

Includes:  1/2 in. NPT threaded spud connector

Used with:  Flame Amplifiers: R7249A,B, R7849A,B, R7749B, R7259, R7290

Comments:  Detects ultraviolet radiation in flames

Mounting:  Integral nut for 1/2 in. sighting pipe

Approvals, Underwriters Laboratories, Inc.:  Listed: File No. MP268, Guide No. MCCZ

Approvals, CSA:  Certified: Master Report LR95329-1

Electrical Connections:  2 NEC Class 1 lead wires

Vibration: 0.5 G max

Approvals, Swiss RE:  Acceptable

Approvals, Factory Mutual:  Approved: Report No. 24181.03

Type:  Ultraviolet, Minipeeper

Ambient Temperature Range (F):  0°F to 215°F

Ambient Temperature Range (C):  -18°C to +102°C

Lead Length (in.):  96 in.

Lead Length (mm):  2438 mm
